Redefining Perimeter Protection Redefining Perimeter Protection

Redefining Perimeter Protection

LumiGuard is a smart perimeter protection software package designed to seamlessly integrate with various Goermicro Vzense 3D ToF cameras. lt offers powerful features such as multi-level zones confguration, customizable object detection (size, duration) and an intuitive Ul with drag-and-drop functionality.

Challenges in Perimeter Protection

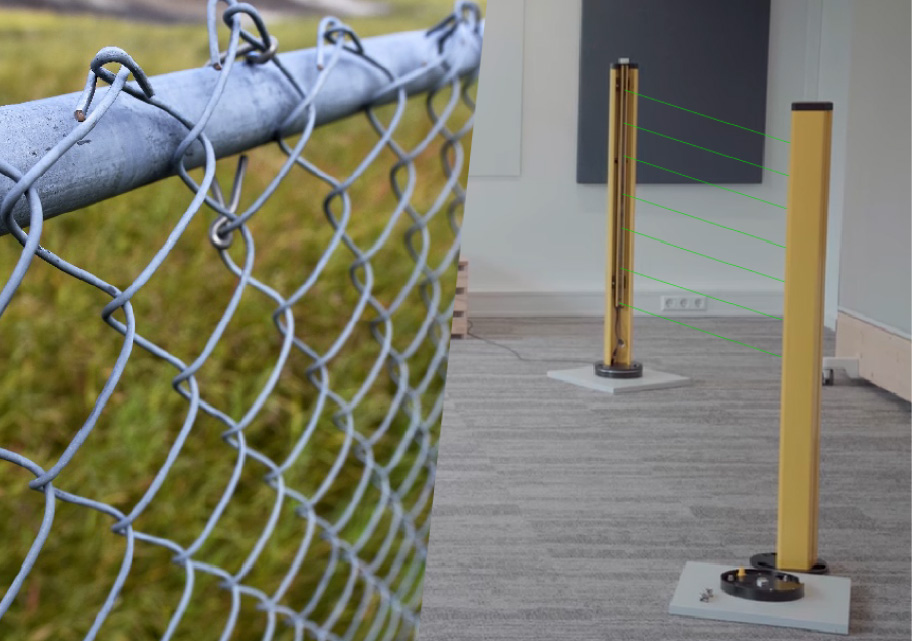

Before LumiGuard, facilities were forced to choose between two imperfect safety solutions.

  • Physical Fences
    Disadvantages: Obstruct workflows, require costly reconfiguration for layout changes, and provide no real-time hazard detection.
  • Optical Beam Barriers
    Disadvantages: Prone to false alarms (e.g., triggered by dust or debris), blind spots, and inability to distinguish between personnel and objects.
    LumiGuard eliminates these trade-offs with adaptive 3D protection.
Traditional-Robot-Safety-Methods

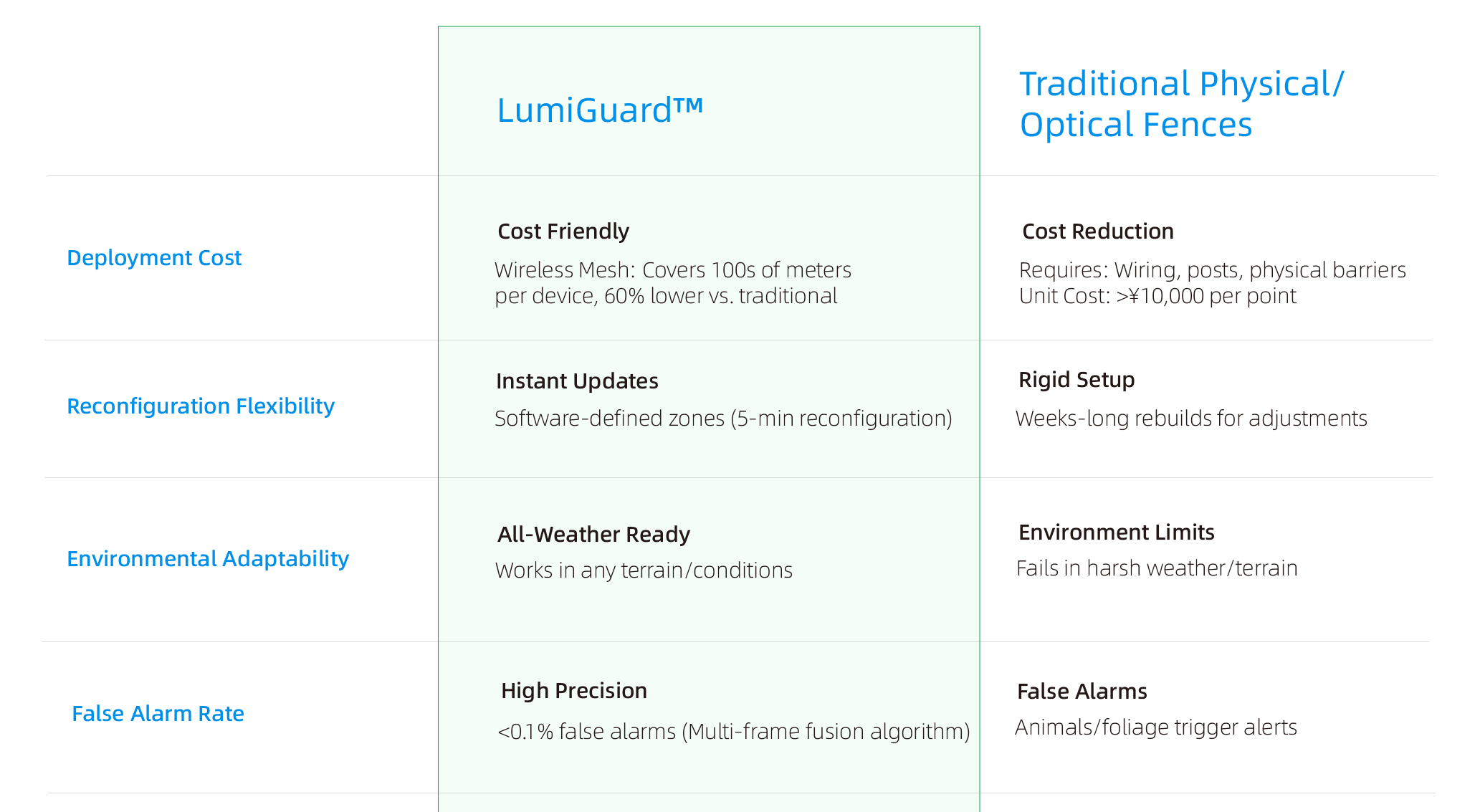

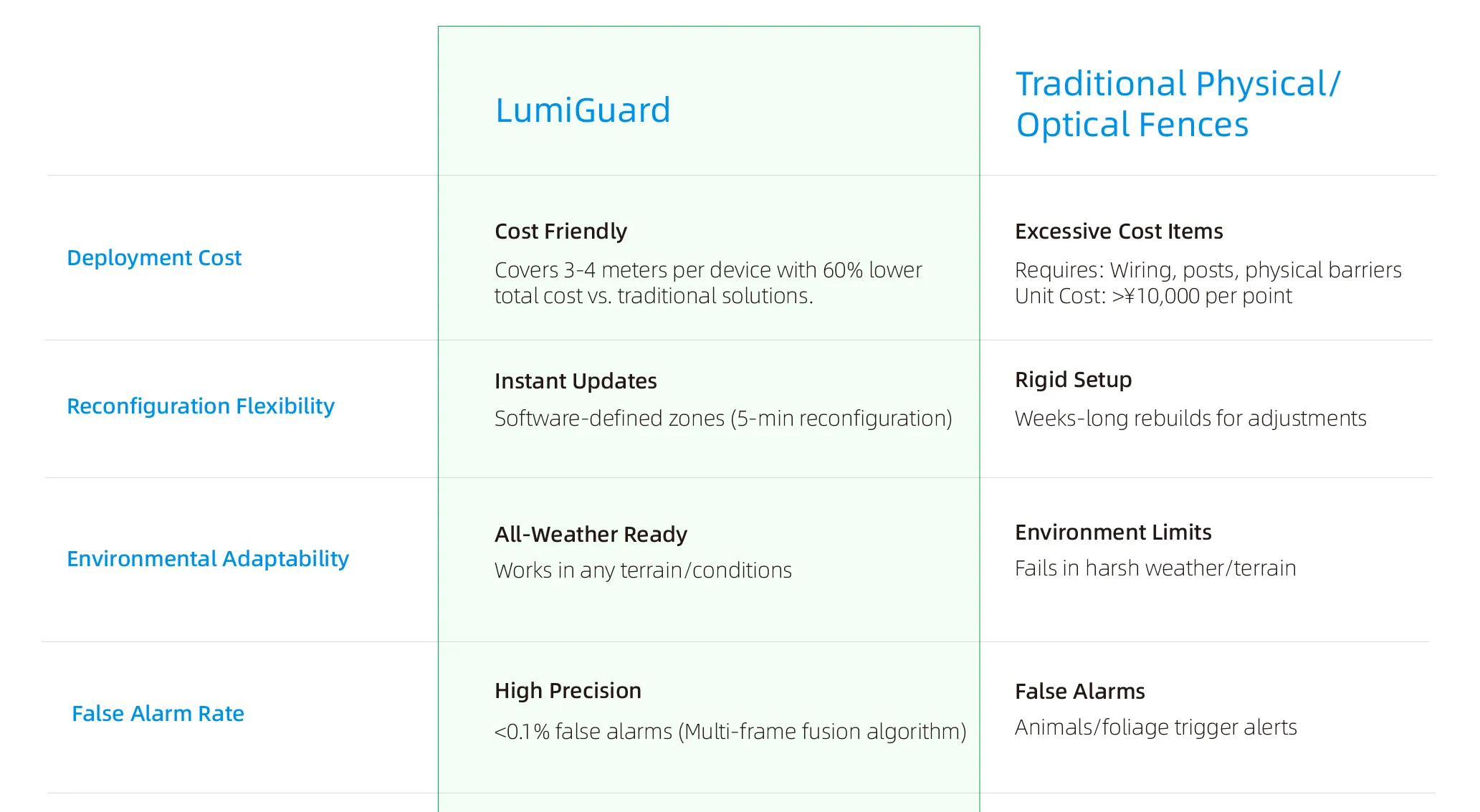

Why Does LumiGuard Redefine Perimeter Protection?

Vzense-LumiGuard-Smart-Fence-Combination-with-Traditional Methods-05

Key Features of LumiGuard

Based on Time-of-Flight (ToF)

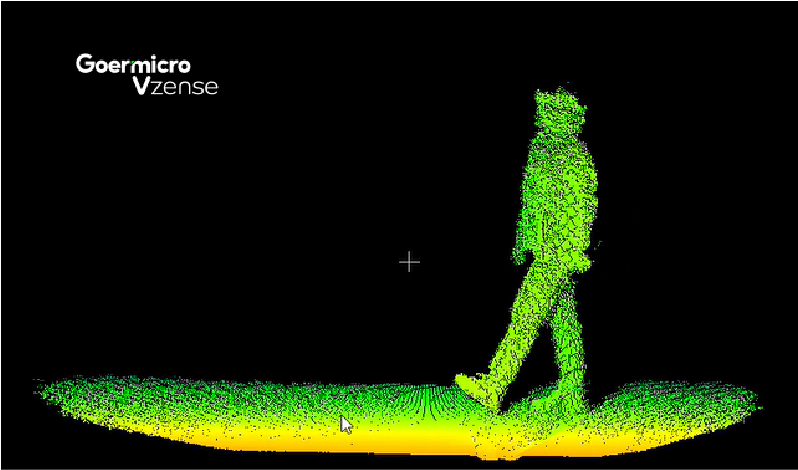

By emitting light pulses and measuring reflection times, it generates real-time 3D point clouds, enabling proactive object detection without physical barriers.

LumiGuard-Is-Based-on-Time-of-Flight-Technology
LumiGuard-Could-Cover-3x4-Meters-Area

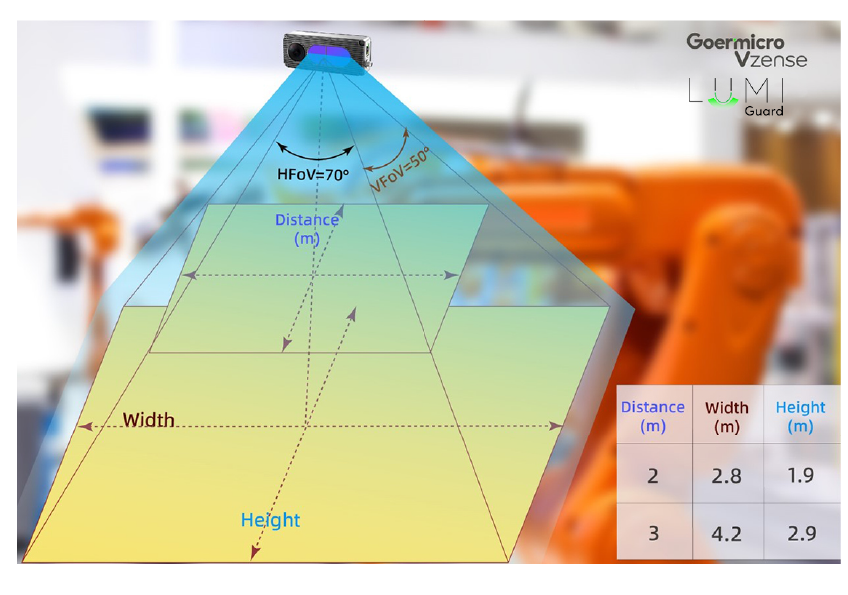

Wide and Adaptable Coverage

LumiGuard offers a working distance of up to 4.5 meters with a 70°(H) × 50°(V) field of view (FoV), allowing a single camera to cover a 3×4 meter security area.

Supporting Customizable Zones

It supports multiple customizable zones with tiered security responses. For example, slow-down or halt commands can be configured for robotic arm zones, ensuring both safety and productivity.

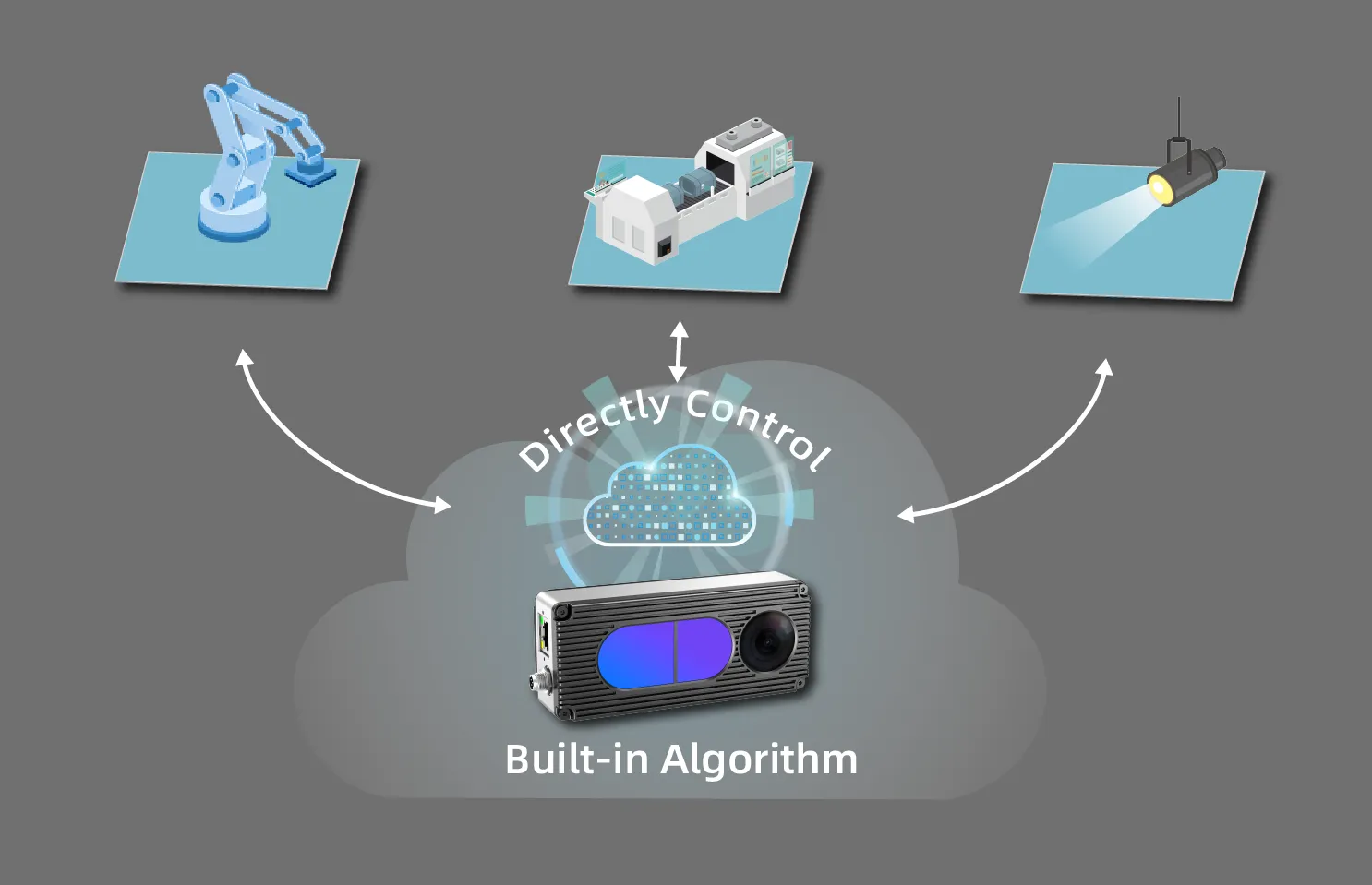

LumiGuard-Could-Directly-Control-Items-Like-Robot-Arms

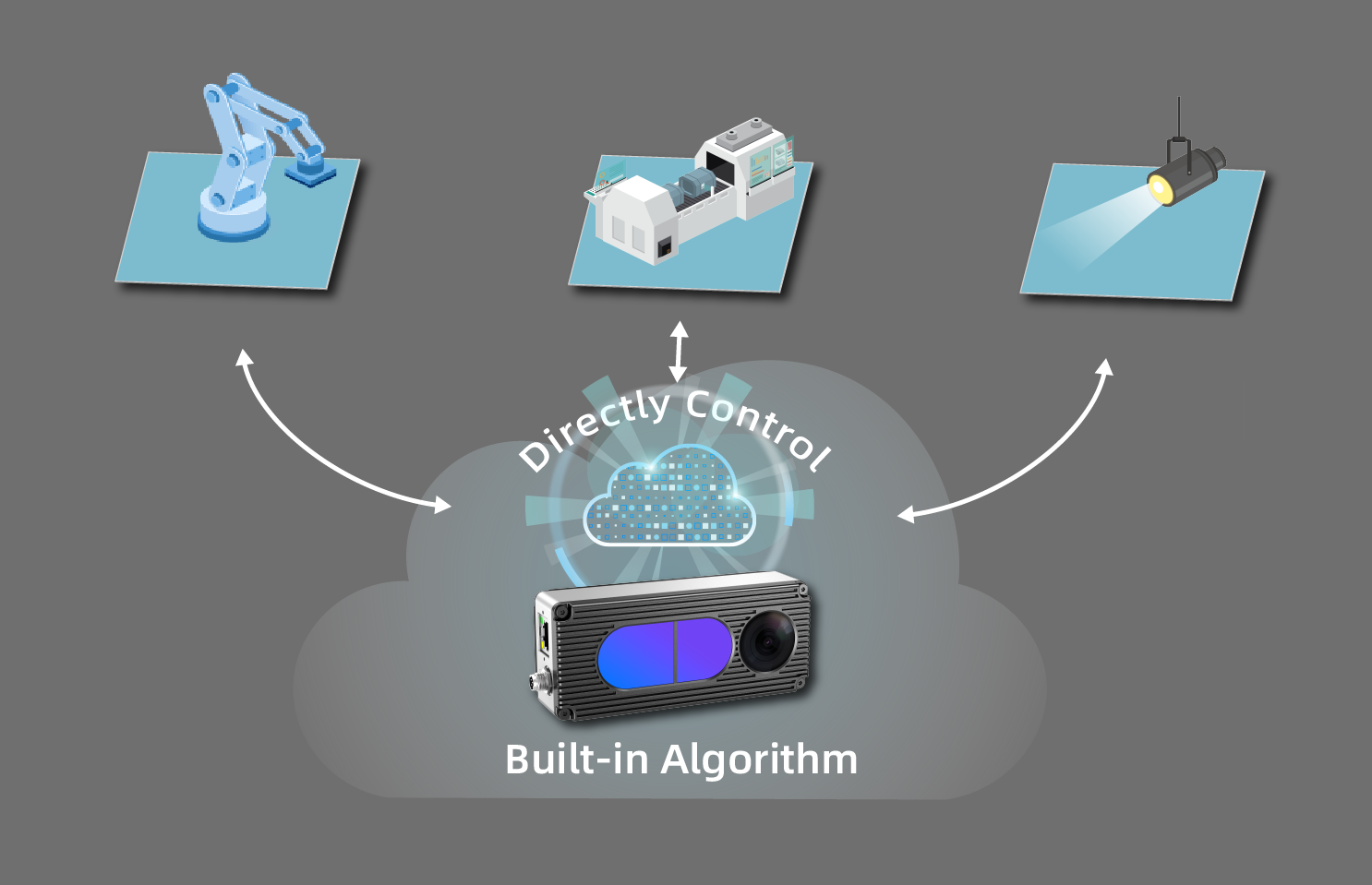

Built-in Algorithm & Output lO Port

LumiGuard’s built-in algorithm delivers real-time Time-of-Flight (ToF) processing with <50ms latency at 30fps and a <0.1% false alarm rate, eliminating the need for a host computer. Its high-precision I/O enables instant hazard response and seamless security integration, while behavior prediction supports customizable, graded alerts. This compact, all-in-one safety solution for industrial automation is powerful, precise, and plug-and-play.

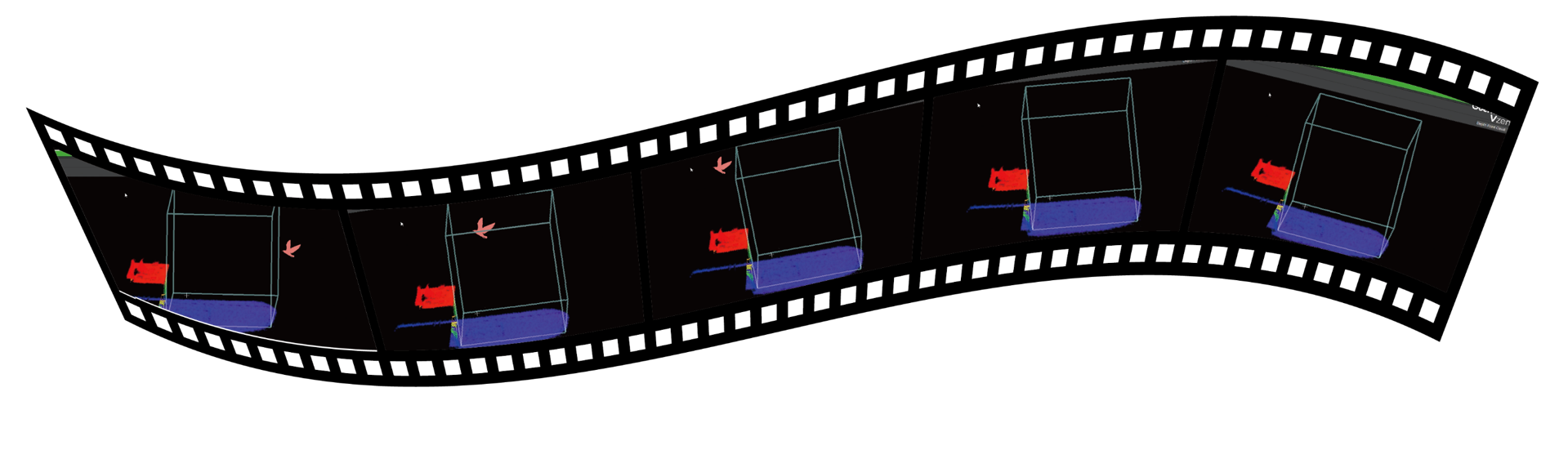

False Alarm Filtering

The multi-frame fusion algorithm filters out transient interference (e.g., birds, falling leaves), ensuring near-zero false alarms. It only triggers alerts for persistent intrusions, delivering reliable security monitoring.

If-A-Bird-Flies-in-the-Area-and-Leave-Soon- LumiGurd-Will- Not-Trigger-An -Alarm

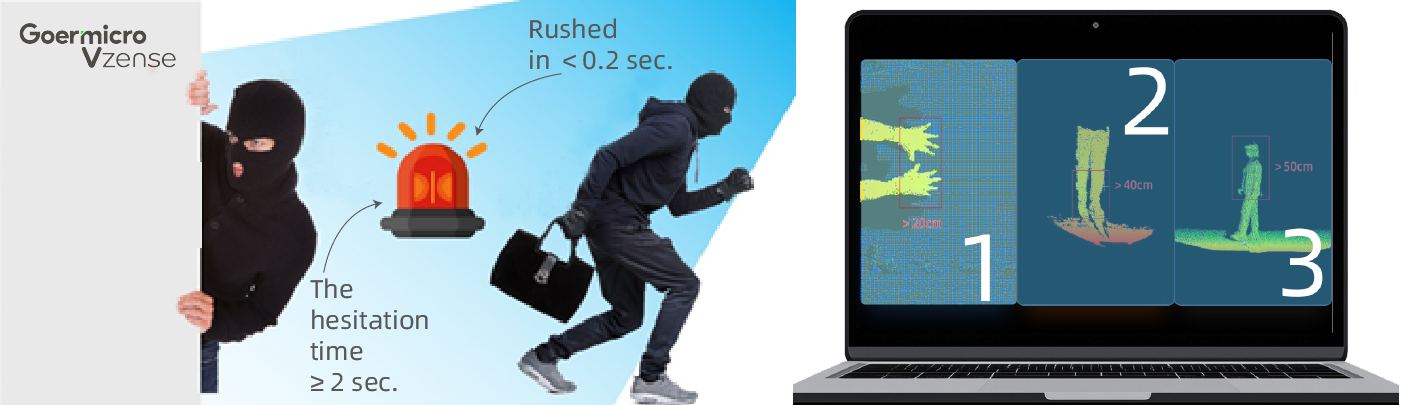

Smart Size & Duration Classification

LumiGuard’s 3D contour-based recognition system classifies targets by size (hands, limbs, or full body) and analyzes loitering duration in monitored areas, triggering graded responses (e.g., warnings or alarms). It accurately detects both suspicious lingering and sudden intrusions, enabling intelligent, automated security protection.

LumiGuard-Has- the-Behavior-Prediction- Function -and-Smart-Target- Classification

Effortless Installation, Defying Spatial Limits

LumiGuard’s compact, space-saving design integrates RGB + depth sensing into a single streamlined device, offering critical benefits for industrial environments:
-Minimal Footprint, Maximum Coverage
– Easy Integration
– Aesthetic & Functional Flexibility
– Cost & Maintenance Efficiency

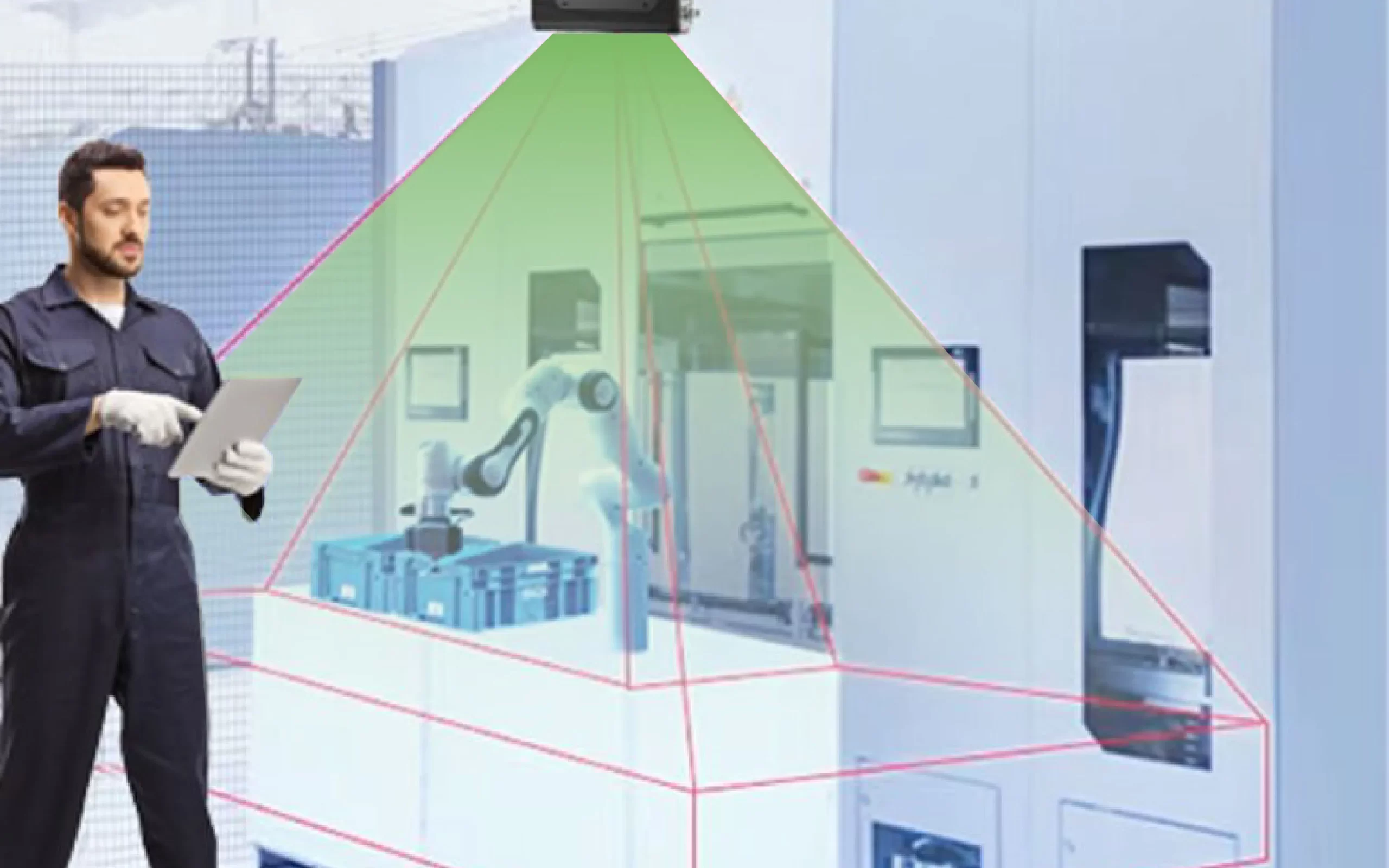

LumiGuard-Fits-Any-Space-Even Corners-with-Tool-Free-Mounting

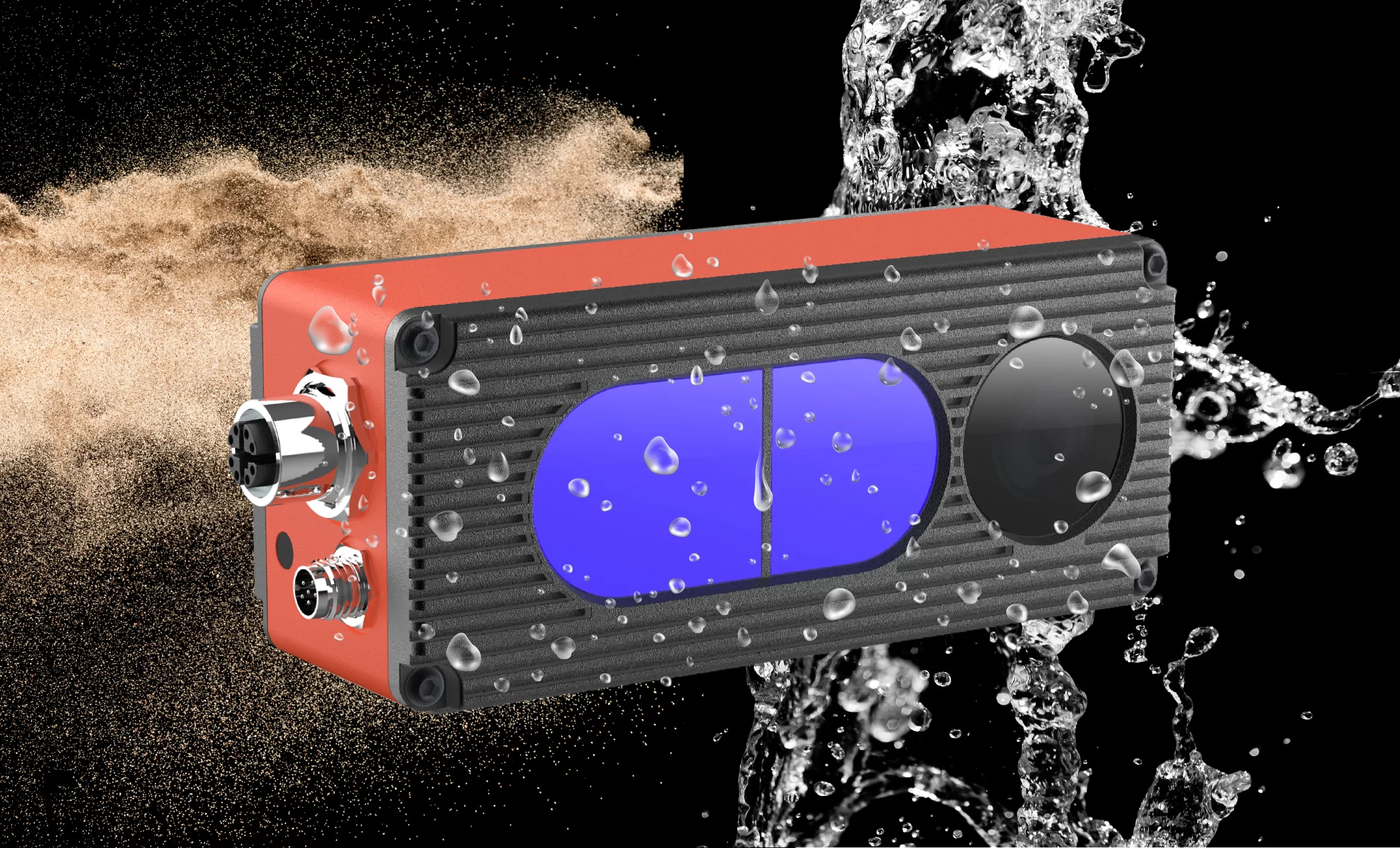

DS87-Is-IP67-Rating

All-Weather, 24/7 Reliability

IP67-rated housing withstands -30°C to 70°C and harsh weather (rain/snow).

Visual Software Integration

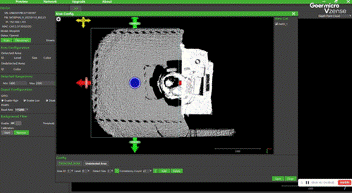

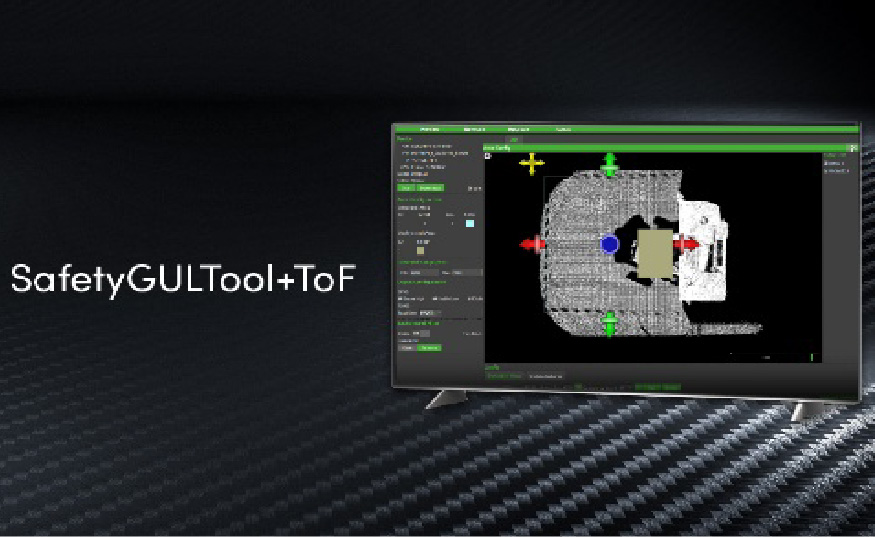

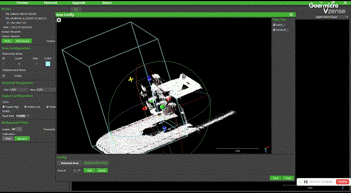

Includes SafetyGUITool—a dedicated configuration platform with: Drag-and-drop zone design, One-click parameter tuning, and Auto-save functionality.

Vzense-Safety-Guard-System-has-Software-Integration
Vzense-Safety-Guard-System-has-Software-Integration-advantages1

1. Drag-and-drop zone design (create/include/exclude areas)

Vzense-Safety-Guard-System-has-Software-Integration-advantages2

2. One-click parameter tuning (sensitivity, dwell time)

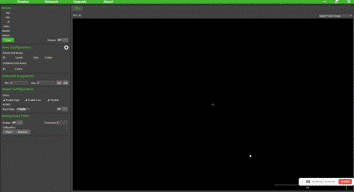

Vzense-Safety-Guard-System-has-Software-Integration-advantages3

3. Auto-save functionality (retains settings during power loss)

Expanding Possibilities for Your Automation Applications

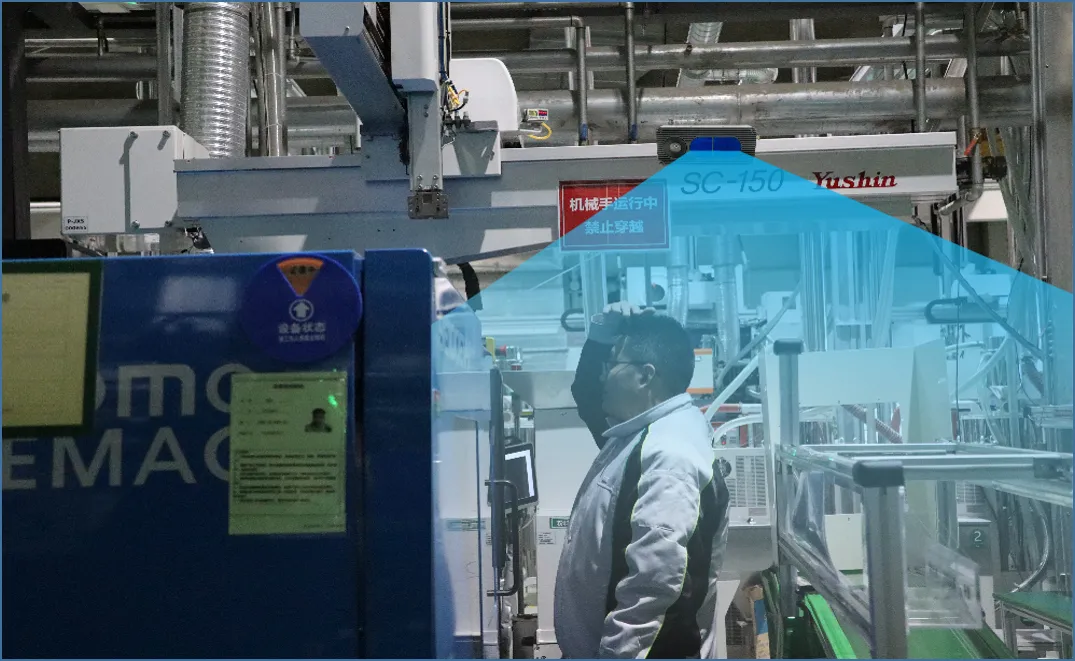

Case 1: Robotic Arm Safety in Automated Factories

LumiGuard is deployed in automated factories to monitor under-head zones of horizontal servo robotic arms. The system:
· Detects personnel intrusions in real time
· Triggers instant alarms and equipment shutdown
· Prevents injuries while maintaining productivity

LumiGuard-Is-Deployed-in-Automated-Factories-to- Monitor-Under -Head-Zones

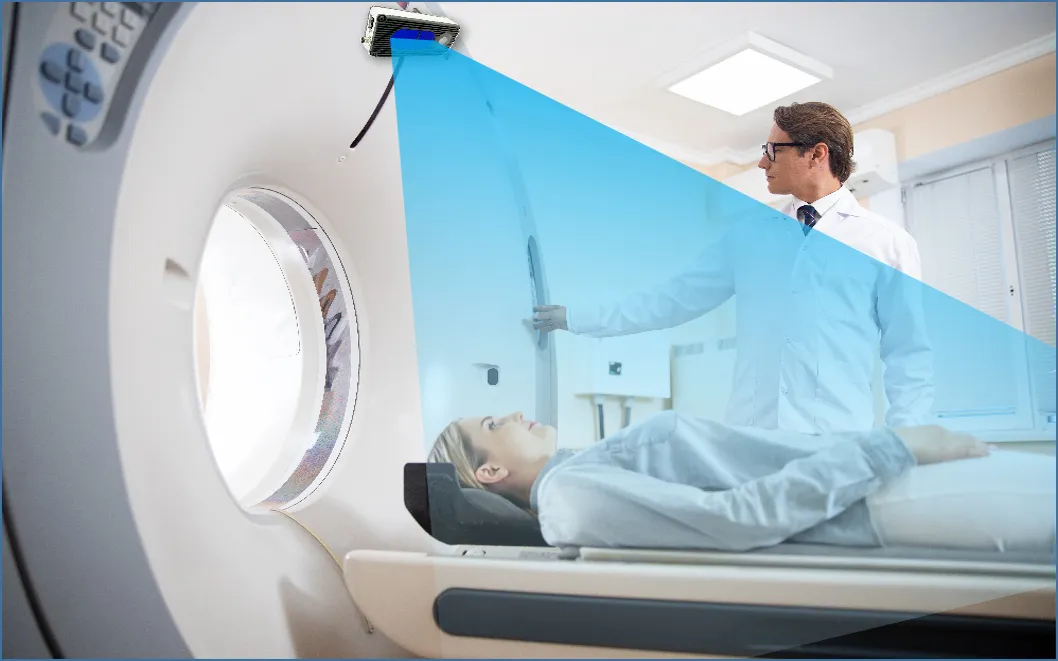

LumiGuard-Works-Well-in- MRI-Suites

Case 2: MRI Patient Pose Monitoring

In MRI suites, LumiGuard at the entrance:
· Scans patient posture in real time
· Blocks scan initiation for unsafe positions
· Protects both patients and equipment

Proven Success with Goertek

LumiGuard has revolutionized our factory’s safety infrastructure. This intelligent systemnot only enhanced protection across all production lines but also optimized operationaefficiency. lts seamless integration and reliability have earned unanimous praise fromour global clients.

Jack Zhang, Head of Plant Security, Goertek

Related Products

Vzense-NYX650660

Advanced Pulse-iToF Camera NYX Series

Vzense-DS8687

Continuous Wave iToF Camera DS Series
